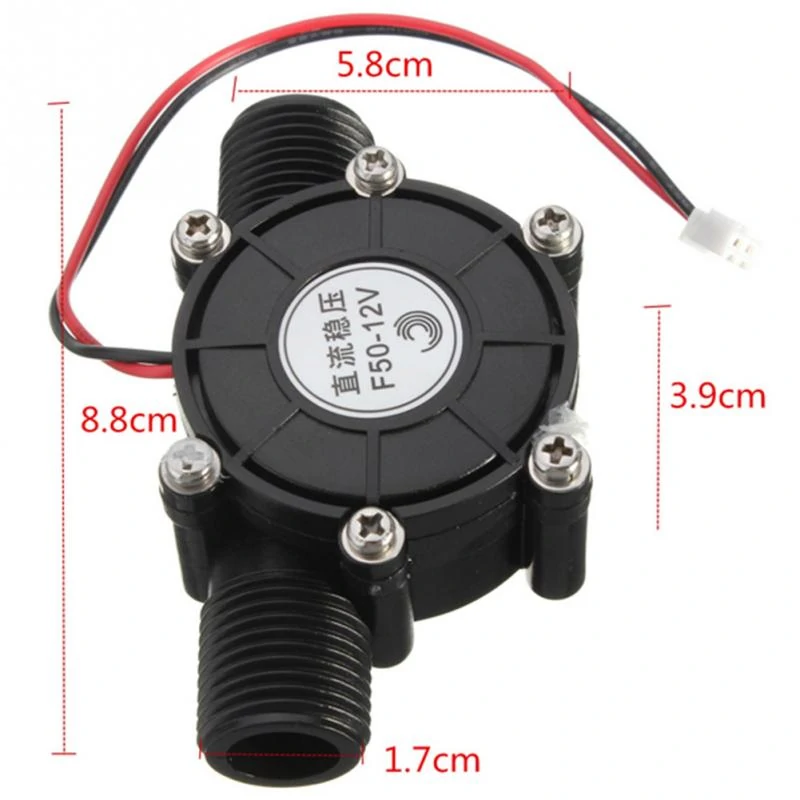

Micro Hydro Generator12V 10W DC water flow generator turbine generator hydroelectric Tap Water Flow DIY
- Stock: In Stock
Description:
Type: 80V/12V/5V Generator
Output high voltage: 80V (1.2Mpa)
The maximum output : ≥220mA (12V)
Line resistance: 10.5±0.5Ω
Insulation resistance: 10MΩ(DC100)
The outlet closed the maximum voltage: 0.6Mpa
The water outlet opens the maximum voltage: 1.2Mpa
Start water pressure: 0.05Mpa
The mechanical noise :≤55dB
Generator single volume: 90g
The life of generator:≥3000h
Appearance: generator surface cleaning, the structure is strong.
Output characteristics: the output voltage with no voltage regulator is proportional to the water pressure.
80V:
DC 0-80V output, the generator does not have a voltage regulator
circuit, the peak voltage reaches 80V, it can directly charge a 3-12V

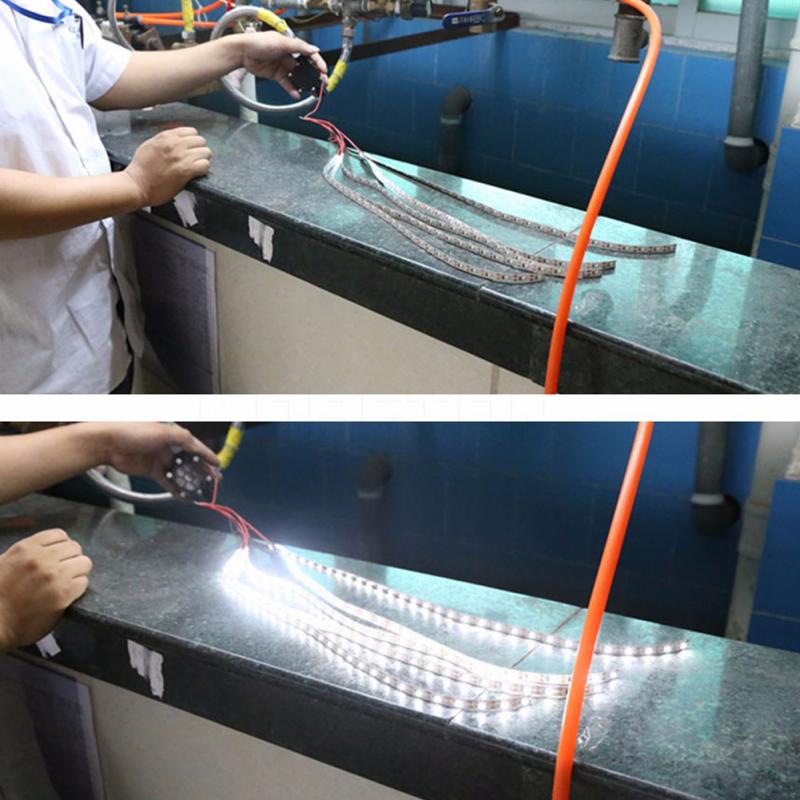

10W LED light, and can directly charge a small battery, and the peak
charging current is about 220mA.
5V: DC 5V regulated output, which can charge mobile phones and batteries with charge management chips.
12V: DC 12V regulated output, which can power and charge 12V radios, and power LED lights.
Wiring Note:
Connect
according to the positive and negative poles, the red wire is the
positive and the black wire is the negative. The positive and negative
of the generator correspond to the positive and negative of the power
supply, positive to positive, and negative to negative.
Package Included:

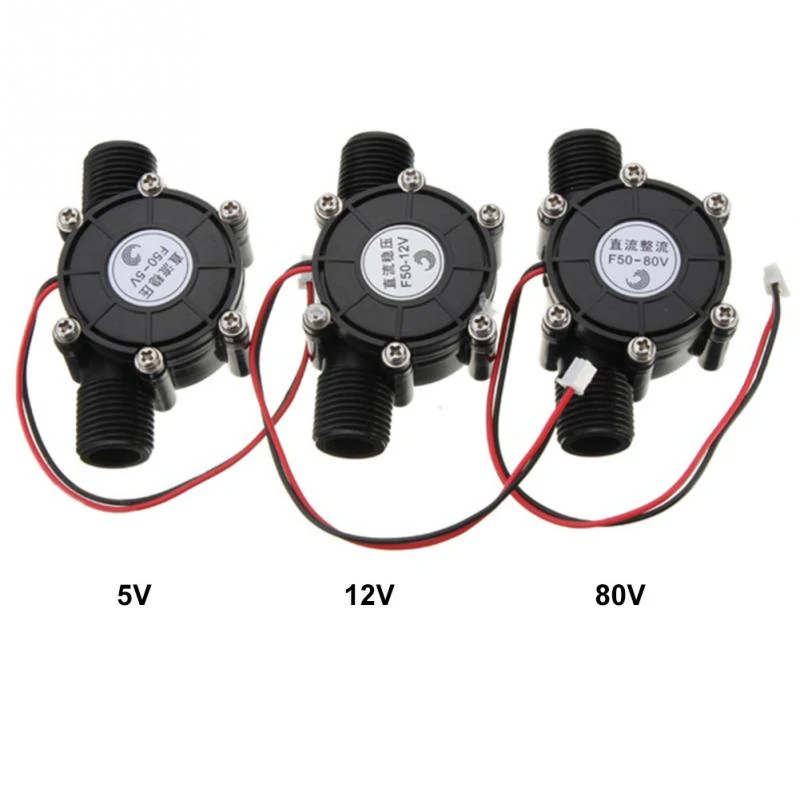

1 x Micro Hydro Generator (80v/12v /5V for option)
